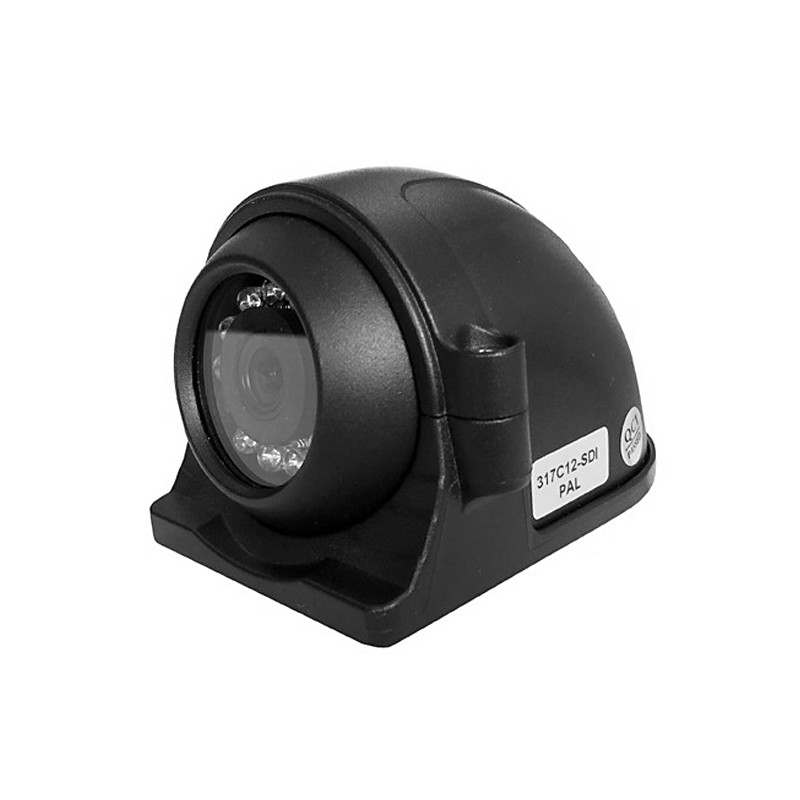

317C12-SDI
Yeni ürün
- HD SDI Fuıll Hd Kamera
- 1080P çözünürlüklü araç kamerası
- 1/3"CMOS Sensör
- 3MP HD 2.8mm @ F2.0 Lens
Daha fazla bilgi
Metal kasa
IP 65, IP 66 Standardında
Bnc bağlantı;
Siyah renk
| Model | 317C12-SDI |
| Model name | SDI metal side-looking camera |
| Image sensor | COLOR 1/3"CMOS |
| Resolution | PAL/ NTSC:1920(H)×1080(V) |
| Horizontal Resolution | Color 1080P(Black 1080P) |
| Min.illumination | 0.001Lux @ (F1.2,AGC ON),0 Lux with IR 0.002Lux @ (F1.8,AGC ON),0 Lux with IR |
| Signal system and Frames | PAL（25FPS）/NTSC（30 FPS）Optional |
| shutter speed | Auto expose， PAL:1/50-1/100000sec NTSC:1/60-1/100000sec |
| Lens | 3MP HD 2.8mm @ F2.0 |
| FOV | Horizontal:0°~60°;Vertical:0°~60°;Rotation:0°~355° |
| Day and night mode | Dual ICR auto color/night |
| synchronization system | Inter-sync |
| Video output | 1CH, Meet SDI standard. ((75Ω/BNC and TNC optional ) |
| SN | ≥52dB |
| Audio | Can not built in |
| Color | Black |
| Operating temperature and humidity | Temperature:-10℃~60℃, humidity: <90% (no condensation) |
| Power supply | DC12V±10% |
| Power consumption | ＜3W |
| Video output cable length | 40cm |
| Ingress protection | Waterproof IP65,IP66 customizable |
| IR Range | 10 m |
| Selection guide | A：SONY CCD B：SHARP CDD C：CMOS |
| 10：720P 11：960P 12：1080P | |
| Dimensions | Product dimensions：Length 89mm *Width 77mm* Height 63mm， Package dimension ：133*83* 75mm |
| Net/Gross Weight | 284 g /311g |
