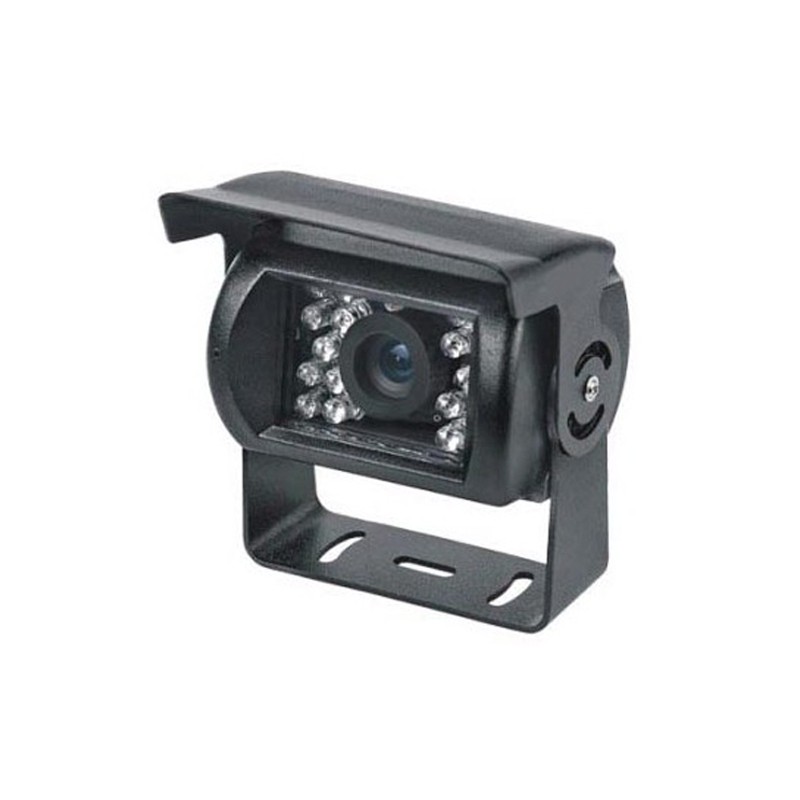

122C12-SDI Daha büyük görüntüle

122C12-SDI

Yeni ürün

HDSDI IR geri görüş kamerası

1/3"CMOS Sensör

PAL/ NTSC:1920(H)×1080(V)

0.001Lux @ (F1.2,AGC ON),0 Lux with IR

3MP HD 3.6mm @ F2.0 Lens

Daha fazla bilgi

Daha fazla bilgi

Model

122C12-SDI

Model name

SDI Rear view camera

Image sensor

COLOR  1/3"CMOS

Resolution

PAL/ NTSC:1920(H)×1080(V)

Horizontal Resolution

Color 1080P(Black 1080P)

Min.illumination

0.001Lux @ (F1.2,AGC ON),0 Lux with IR

0.002Lux @ (F1.8,AGC ON),0 Lux with IR

Signal system and Frames

PAL(25FPS)/NTSC(30 FPS) Optional

shutter speed

Auto expose, PAL:1/50-1/100000sec NTSC:1/60-1/100000sec

Lens

3MP HD 3.6mm @ F2.0(2.8~12 mm optional)

FOV

Horizontal:0°~355°;Vertical:0°~90°;Rotation:0°~355°

Day and night mode

Dual ICR auto color/night

synchronization system

Inter-sync

Video output

1CH, Meet SDI standard. ((75Ω/BNC and TNC optional )

SN

≥52dB

Audio

Can not built in

Color

Black

Operating temperature and humidity

Temperature:-10℃~60℃,  humidity: <90% (no condensation)

Power supply

DC12V±10%

Power consumption

<5W

Video output cable length

40cm

 Ingress protection

IP66

IR Range

10 m

Selection guide

A:SONY  CCD   B:SHARP  CDD     C:CMOS

10:720P   11:960P   12:1080P

Dimensions

Product dimensions:Length  80mm *Width 77mm* Height 70mm, Package dimension :125*80* 65mm

Net/Gross Weight

297 g /334g
