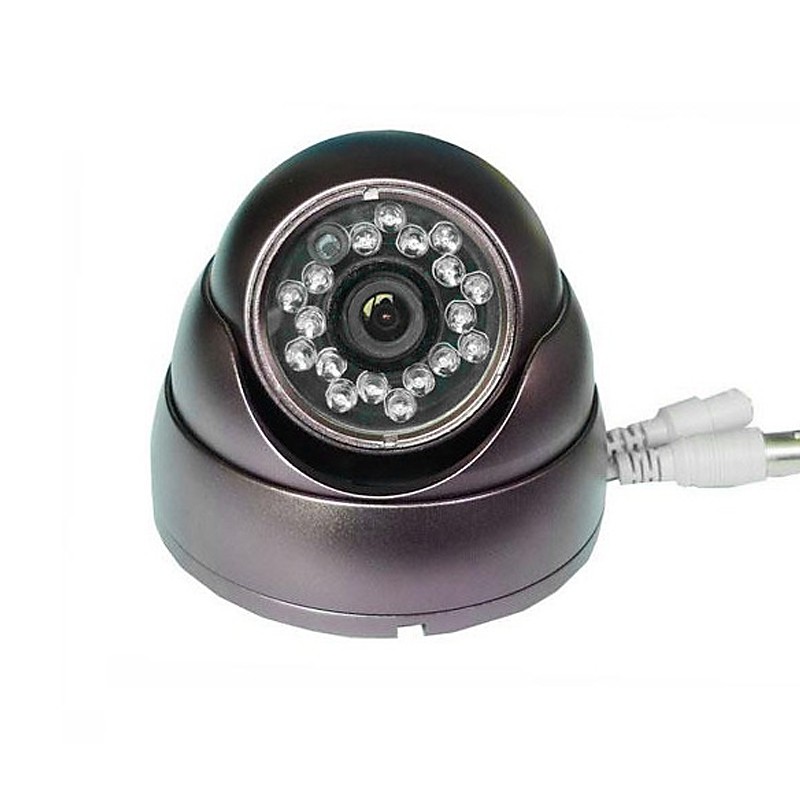

130C12-SDI
Yeni ürün
- Full Hd HDSDI
- Meta Kasa Dome Kamera
- 1/3"CMOS Sensör
- Renkli 1080P(S/B 1080P)
- 0.001Lux @ (F1.2,AGC ON),0 Lux with IR
- 3MP HD 2.8 mm Lens
Daha fazla bilgi
Model | 130C12-SDI |
Model name | SDI Metal small dome camera |
Image sensor | COLOR 1/3"CMOS |
Resolution | PAL/ NTSC:1920(H)×1080(V) |
Horizontal Resolution | Color 1080P(Black 1080P) |
Min.illumination | 0.001Lux @ (F1.2,AGC ON),0 Lux with IR 0.002Lux @ (F1.8,AGC ON),0 Lux with IR |
Signal system and Frames | PAL（25）/NTSC（30） |
shutter speed | Auto expose， PAL:1/50-1/100000sec NTSC:1/60-1/100000sec |
Lens | 2.8mm @ F2.0 |
FOV | Horizontal:0°~355°;Vertical:0°~90°:Rotation:0°~355° |
Day and night mode | Dual ICR auto color/night |
synchronization system | Inter-sync |
Video output | 1CH, Meet SDI standard. ((75Ω/BNC and TNC optional ) |
SN | ≥52dB |
Audio | Can not built in |
Color | Black/white/Purple/Grey/Silver optional |
Operating temperature and humidity | -10℃~60℃ |
Power supply | DC12V±10% |
Power consumption | ＜3W |
Video output cable length | 40cm |
Ingress protection | IP64 |
IR Range | 10 m |
Selection guide | A：SONY CCD B：SHARP CDD C：CMOS |
10：720P 11：960P 12：1080P | |
Dimensions | Product dimensions：Diameter 69mm * Height 50mm， Package dimension ：80*80*80mm |
Net/Gross Weight | 189 g /221g |
