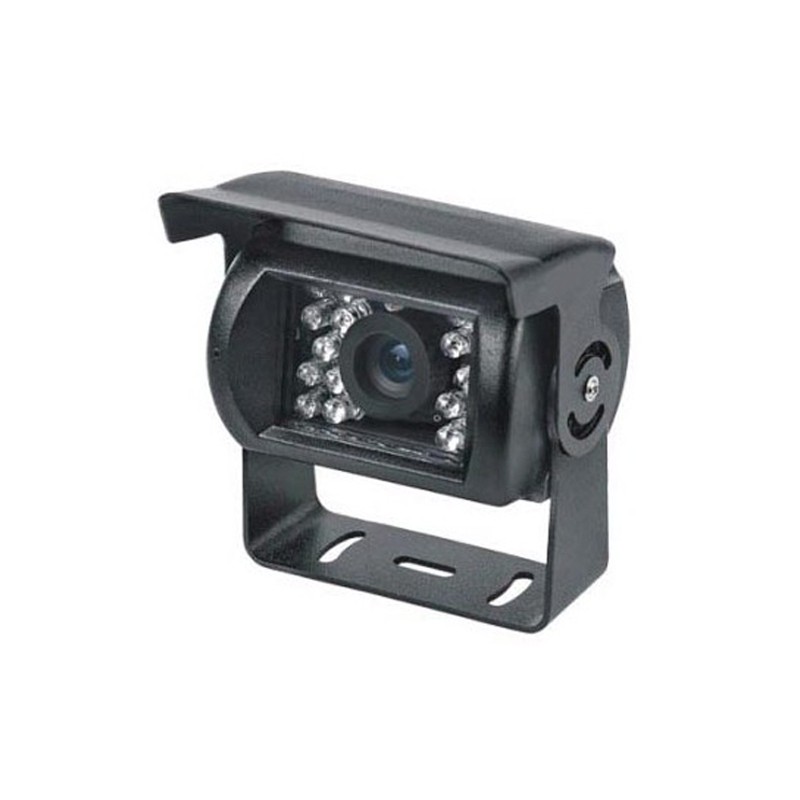

122C10-IPC Daha büyük görüntüle

122C10-IPC

Yeni ürün

  • H.264 video formatı,
  • G711U ses sıkıştırması
  • 1920x1080, 25fps
  • 10/100 RJ45
  • HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS,
  • PPPoE desteği
  • ONVIF,POE
  • -20℃~+55℃

Daha fazla bilgi

Daha fazla bilgi

Model

TS-122C10-IP

Model name

Rear view IPC

Image sensor

COLOR  1/4"CMOS

Resolution

PAL/ NTSC:1280(H)×720(V)

Horizontal Resolution

Color 720P( Black720P)

Min.illumination

Color 0. 1Lux @(F1.2,AGC ON),0 LUX with IR

Black 0.01 Lux @ (F1.2,AGC ON),0 LUX with IR

Signal system and Frames

PAL(25FPS)/NTSC(30 FPS) Optional

Video compression

H.264/MJPEG

shutter speed

Auto expose,1/50S to 1/100000S

Lens

3MP HD 3.6mm @ F2.0(2.8~12 mm optional)

FOV

 Horizontal:45°; Vertical:0°~90°

Day and night mode

Dual ICR auto color/night

synchronization system

Inter-sync

Video output

1CH,meet ONVIF protocol

(Connector: RJ45 and 6pins aviation optional)

Video compressed output rates

32 Kbps~8Mbps

信噪比 SN

>52db

Mount protocol

RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF

Audio

can not built in

Color

Black

Operating temperature and humidty

Temperature:-10℃~60℃, humidity: <90%(no condensation)

Power supply

DC12V±10%

Power consumption

<5W

Videooutput cable length

40cm

Ingress protection

IP66

IR range

10 Meters

Selection Guide

A:SONY  CCD   B:SHARP  CDD     C:CMOS



10:720P   11:960P   12:1080P

Dimensions(mm)

Product dimension:Length80mm*Width77mm*Height70mm,Package dimension: 125x80x65mm

Net/gross

340 g /341g
