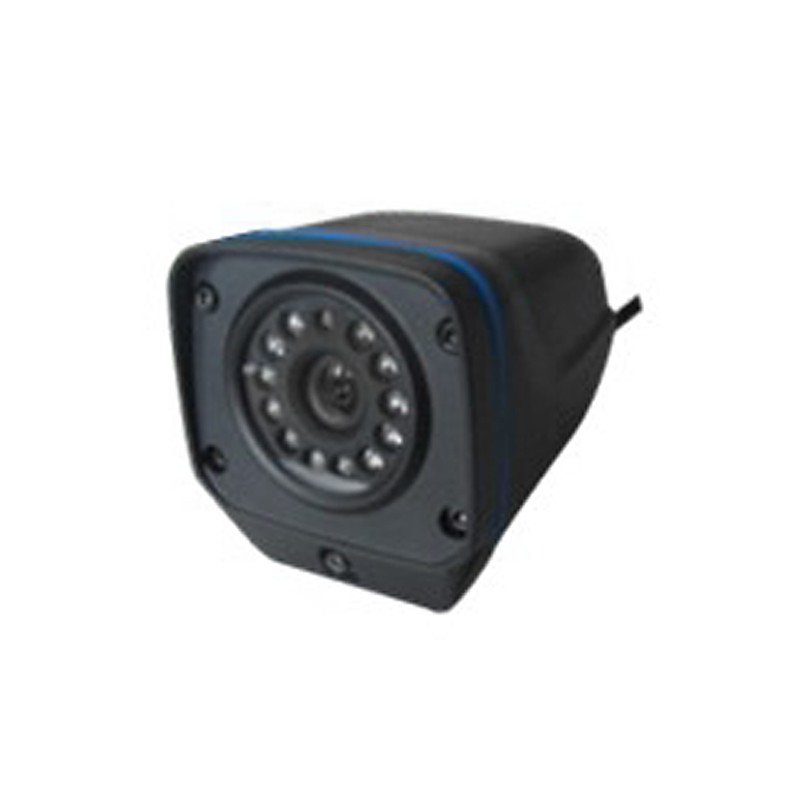

712-C5-IP

Durum: Yeni ürün

Series	SVTIP-712C5 HD Network Camera
Camera Parameters	Sensor	1/3" CMOS SONY IMX238
	Resolution	1280(H)x720(V)
	Signal System	50/60 Hz
	Minimum Illumination	0.05Lux(Color Illumination ),F1.2
	Minimum Illumination	1/25 Second -1/10000 Second
	Day/Night	IR-CUT
	Wide Dynamic Range	Digital Wide Dynamic Range
	Black-light Compensation	Support
	S/N	≥40db
	Wide Dynamic Range	≥80db
	IR	＜8m
Optical Lens	Port	6-pin DJ M12(PON)
	Aperture	Fixed aperture F1.8
	Lens	2.8mm, 4mm, 6mm, 8mm Optional
Audio/Video Encode	Video Compression	H.264
	Compression Output Rate	768Kbps-6144Kbps
	Image Resolution	Main Stream:720p @ 30fps, Network Sub Stream:VGA @ 25FPS Record Sub Stream:VGA @ 30FPS
	CBR/VBR	Support
	CBR/VBR	Support	Image	Maximum Image	1280x720
Frame	30FPS
Image Setting	Chroma, contrast, saturation and sharpness
Network	Network Protocol	HTTP,TCP,ARP,RTSP,UDP,RTCP,SMTP,DHCP,DNS,DDNS,PPPoE,IPV4,UPnP,NTP
	ONVIF	Support
	Client Terminal Preview	Built-in WEB server; Support IE browser
	Storage	Client Terminal/ MDVR
Others	Temperature	-30℃--＋70℃
	Humidity	0% - 90%
	Power Supply	PON(DC12V)
	Client Terminal Preview	Built-in WEB server; Support IE browser
	Waterproof Class	IP67
	Power	<2w（Day）<4w（Night）
	Dimension (mm)	90.5 (L)x68 (W)x64 (H)
