> >>>>DH-SD6AL230F-HNI

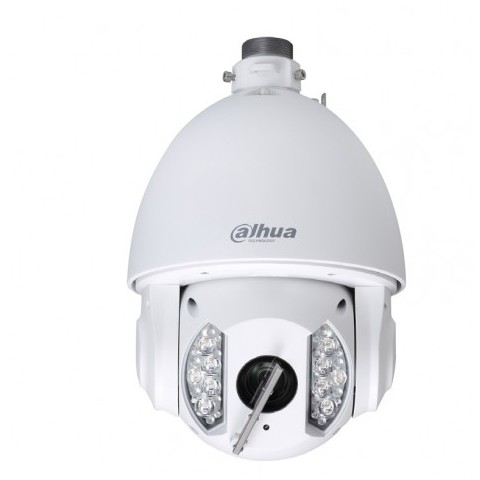

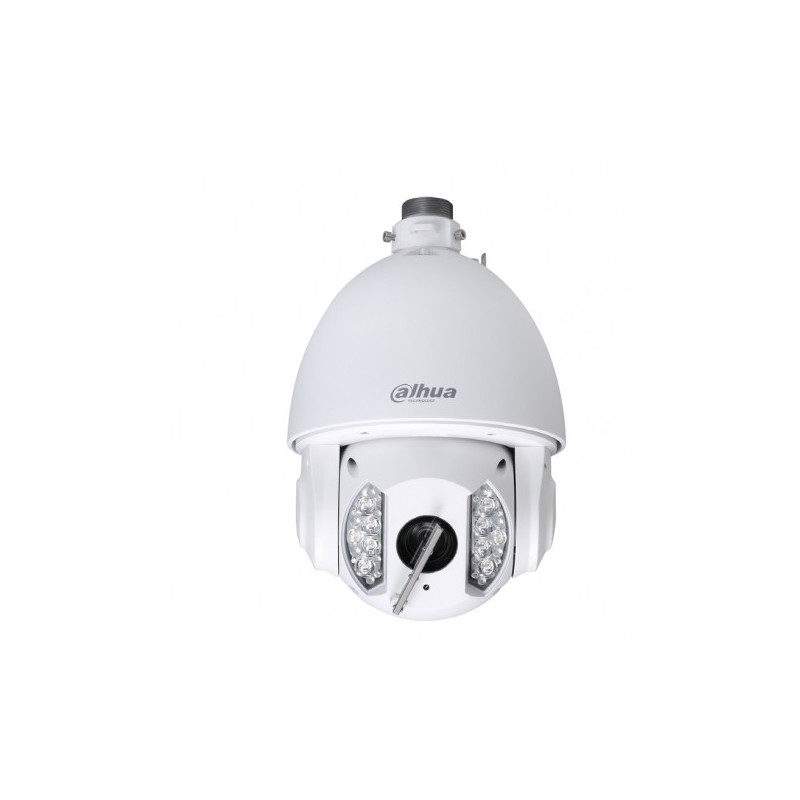

DH-SD6AL230F-HNI Daha büyük görüntüle

DH-SD6AL230F-HNI

Yeni ürün

· 1/1.9” 2Megapixel CMOS · Powerful 30x optical zoom · Starlight technology · Max. 25/30fps@1080P, 25/30/50/60fps@720P · Auto tracking and IVS · Support Hi-PoE · IR distance up to 500m · IP67

Daha fazla bilgi

Daha fazla bilgi

Camera
Image Sensor1/1.9″ CMOS
Effective Pixels1920(H) x 1080(V), 2 Megapixels
RAM/ROM1024M/64M
Scanning SystemProgressive
Electronic Shutter Speed1/1s~1/30,000s
Minimum IlluminationColor: 0.002Lux@F1.5; 0Lux@F1.5 (IR on)
S/N RatioMore than 56dB
IR DistanceDistance up to 500m (1640ft)
IR On/Off ControlAuto/Manual
IR LEDsLaser module
Lens
Focal Length6mm~180mm
Max. ApertureF1.5~ F4.3
Angle of ViewH: 61.2° ~ 2.1°
Optical Zoom30x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
1920m(6299ft)768m(2520ft)384m(1260ft)192m(630ft)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°
Manual Control SpeedPan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset SpeedPan: 240° /s; Tilt: 200° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up ActionAuto restore to previous PTZ and lens status after

power failure

Idle MotionActivate Preset/ Scan/ Tour/ Pattern if there is no

command in the specified period

ProtocolDH-SD, Pelco-P/D (Auto recognition)
Intelligence
Auto TrackingSupport
IVSTripwire, Intrusion,Abandoned/Missing, Face Detection, Heat Map
Video
CompressionH.264 / MJPEG
Streaming Capability3 Streams
Resolution1080P(1920×1080)/720P(1280×720)/D1(704×576/ 704×480)/CIF(352×288/352×240)
Frame RateMain stream: 1080P(1~25/30fps), 720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/720P/D1/CIF (1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.264: 448K~8192Kbps, MJPEG: 4096K~20480Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR(120dB)
White BalanceAuto,ATW,Indoor,Outdoor,Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetetionSupport
Region of InterestSupport
Electronic Image

Stabilization (EIS)

Support
DefogSupport
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas
Audio
CompressionG.711a/G.711mu/G.726/AAC
Network
EthernetRJ-45 (10Base-T/100Base-TX)
ProtocolIPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,

ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP,

DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge StorageLocal PC for instant recording, Micro SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS
Smart PhoneIOS, Android
Certifications
CertificationsCE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

Interface
Video Interface1 port(BNC, 1.0V[p-p], 75Ω)
RS4851
Audio I/O1/1
Alarm I/O7/2
Electrical
Power SupplyAC24V/3A(±25%), Hi-PoE
Power Consumption24W, 38W (IR on)
Environmental
Operating Conditions-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress ProtectionIP67
Vandal ResistanceN/A
Construction
CasingMetal
DimensionsΦ240(mm) x 357(mm)
Net Weight6.75kg(14.88lb)
Gross Weight10.5kg(23.15lb)
