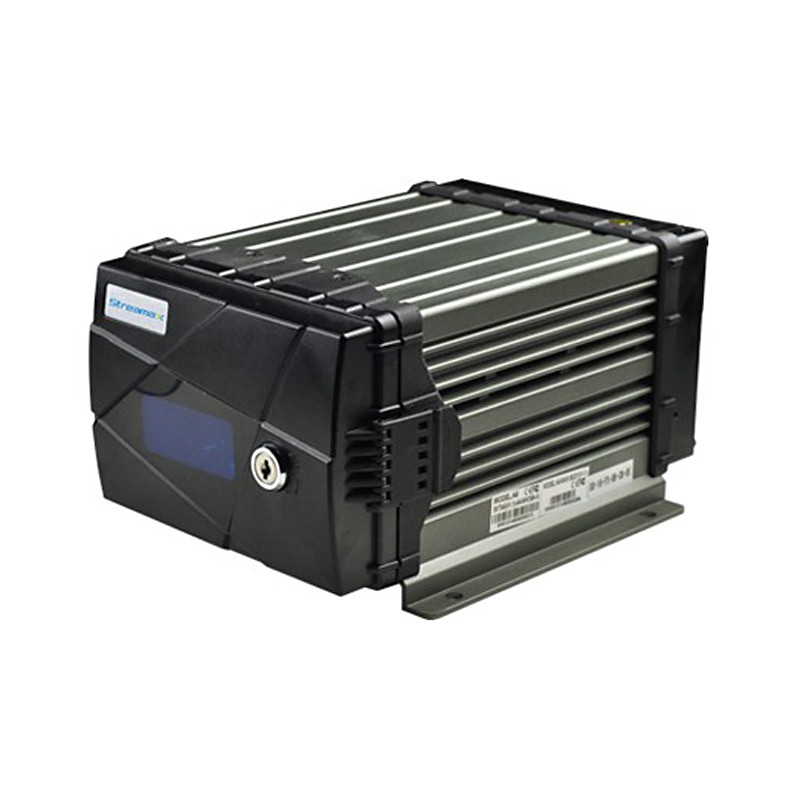

A5-H0404 Daha büyük görüntüle

A5-H0404

Yeni ürün

-4 kanal WD1 + 4 kanal IPC (720P) desteği

-Kolay bakım için modüler tasarım;

-Konum takibi için dahili GPS;

-Supports WIFI for video files download

-Canlı görüntü ve uzaktan izleme için dahili 3G;

-Ana kayıt için sabit disk desteği

-Video dosyaları indirme için WIFI desteği

-360 derece kurulum için devrimsel titreşim önleme teknolojisi.



Daha fazla bilgi

Daha fazla bilgi

Function Overview

Preview, Recording, Network, Playback, Location tracking

System

OS

Linux 3.0.8

Control Mode

IR remote control, control panel, network

Video

Input

8 channels WD1+4 channels IPC(720P)

Output

2 channels

Total Resource

300fps D1 @ PAL / 360fps D1 @ NTSC

Video Signal Standard

Electrical level: 1Vpp; Impedance: 75Ω

NTSC/PAL Optional

Audio

Input

8 channels

Output

1 channel

Audio Signal Standard

Electrical level: 2Vpp; Input impedance: 4.7Ω

Display

Display Split

1/4/9/16

OSD

GPS information, alarm, temperature, acceleration, voltage,

device information, software version, MCU version,

network information

Operation Interface

Semi-transparent GUI

Recording

Video/Audio Compression

H.264/ADPCM

Image Resolution

PAL: WD1(960X576), D1(704X576), WHD1(960X288), HD1(704x288),WCIF(480X288), CIF(352x288)

NTSC: WD1(960X480),D1(704x480),WHD1(960X240), HD1(704x240), WCIF(480X240), CIF(352x240) Digital:720P(1280X720)

Image Quality

4 Levels adjustable

Recording Mode

Manual/Schedule/Alarm (sensor trigger, speed, acceleration,

video loss, temperature)

Pre-recording

0-60minutes

Post-recording

0-30minutes

Mirror recording

Yes

Playback

Playback Channel

1 channel by local playback, 1 channel by software playback,

4/8 channels playback

Search Mode

Date/time, channel, event

Network

3G/4G

EVDO/WCDMA/TDD/FDD

Supports 3G/4G dual SIM cards

Locating

GPS

Location tracking, speed detection and time sync

Storage

Hard Disk

2.5” SATA HDD

Interface

USB

USB2.0 × 2

SD

SD × 1

Sensor

8 inputs, 2 outputs

Speed

1 channel pulse speed detection

Panel

Control panel CP4 (Optional accessory)

Power

Input

DC6-36V

Output

1A@12V,1A@5V

Consumption

Impact current: input 13.5V@7.8A

Working current: input 13.5V@1.6A  input 27V@0.7A

Standby current: 0A

Physical Characteristic

Dimension (L × W × H)

313x176x119mm

Weight

3.7Kg

Environment

Operating Temperature

-25℃- +60℃

Operating Relative Humidity

8%-90%
