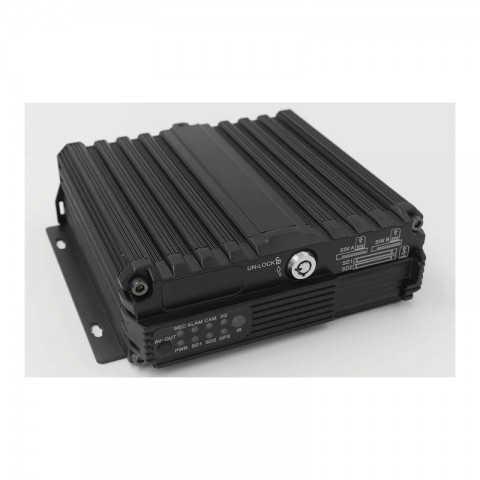

MDVR 720P-SD4
Yeni ürün
- Linux işletim sistemi,
- H.264 sıkıştırma,
- 4 kanal 720P veya 4 kanal 960H + 1 kanal Ip kamera,
- Tümleşik GPS modülü,
- Opsiyonel 3G veya 4G modül
- Max. 128 Gb SD Karta Kayıt
Daha fazla bilgi
Linux işletim sistemi, H.264 sıkıştırma, 4 kanal 720P veya 4 kanal 960H +
1 kanal Ip kamera, tümleşik GPS modülü, Opsiyonel 3G veya 4G modül,
araç ile internetten sesli görüşme imkanı (Opsiyonel), statik ip zorunluluğu
olmadan kayıtlama ve uzak izleme imkanı, alüminyum özel kasa, ücretsiz yazılım,
G sensör (Opsiyonel), herbiri maksimum 128 GB SD kart desteği, Alarm durumuna
göre istenilen kamerayı tam ekran yapma, güç kaybında 8 sn'ye kadar kayda devam.
| Function | Performance | |
| System | Language | English / Chinese |
| Operation Interface | Graphical User Interface (OSD menu) | |
| Password Security | 2 Levels: Administrator or User | |
| Video | Video Input | Supports 4 channels CIF/HD1/D1/960H/720P AHD camera Video input Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input Supports 1-CH 720P/1080P IPC + 4-CH 960H/D1/CIF Video input Note: 4 channels 720P AHD or 1-CH 720P/1080P IPC + 4-CH 960H Video input will require high speed SD card ( > 80Mb/S, Class 10 or higher) |

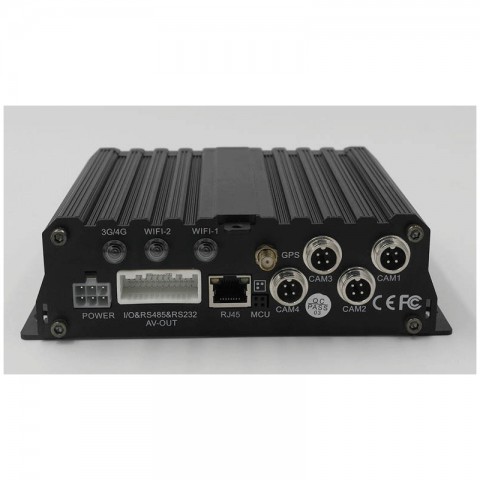

| Video Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port ) | |
| Video Display | Single picture, 1~5 pictures | |
| Signal System | PAL / NTSC ( PAL@100 frame 720P/sec; NTSC@120 frame 720P/sec ) | |
| Image Compression | H.264 Main profile | |
| Audio | Audio Input | 4 Channels |
| Audio Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port ) | |
| Recording Format | Synchronized A/V recording | |
| Recording & Storage | Image Resolution | CIF / HD1 / D1 / 960H / 720P optional |
| Video Coding | ISO14496-10 Industry Standard | |
| Video Bit Rate | CIF: 1536Kbps ~ 128Kbps, | |
| HD1/D1: 2048Kbps ~ 400Kbps, | ||
| 960H: 2048Kbps ~ 400Kbps, | ||
| 720P:4096Kbps ~ 400Kbps | ||
| Select from 8 Levels of Video Image Quality ranging from 1 (Highest) to 8 (Lowest) | ||
| Audio Bit Rate | 40Kbps | |
| Storage | 2 SD Card Slots, Up to 128GB each, Class 10 or higher | |
| Alarm | Alarm Input | 8 Channels, Select trigger for either less than 1VDC or greater than 5VDC |
| Alarm Output | 1 Channel, 12V output | |
| Communication Ports | RS485 | 1 Port for communication or data usage |
| RS232 | 2 Port for communication or data usage | |
| RJ45 Network | 1 Port of RJ45. For connection to an IP camera with maximun of 1080P | |
| Wireless Communication* | 3G* | 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional internal module |
| 4G* | (TDD-LTE / FDD-LTE) optional internal module to match local cellular carrier | |
| Wi-Fi* | Internal Wi-Fi 802.11b/g/n (2.4 / 5.8 Ghz) option | |
| GPS* | Int'l Standard GPS* | Internal GPS module. Real-time geographic coordinates, speed information |
| G-Sensor | Internal G-Sensor | Supports 3 Axis Motion Detection with user set ranges for X, Y and Z coordinates |
| Software | PC Playback | A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR |
| IVMS | Wireless (requires Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc. | |
| Software Upgrade | Local or Remotely | Upgrade through SD card or remotely via IVMS platform |
| Voltage Input | +8～+36V | 8～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage. |
| Voltage Output | 12V | 12V（+/-0.2V），Max 3A |
| ACC Detection | ≤4V | Power-off |
| ≥6V | Power-on | |
| Video Input Resistance | 75Ω | 75Ω |
| Video Output Voltage | 2Vp-p | 2VP-P CVBS output analog signal, screen input requires 75Ω resistance |
| I / O Port | <1V | Low voltage trigger |
| >5V | High voltage trigger | |
| Operational Temperature | -25℃ ~ 75℃ | Install in well ventilated area, protected from moisture, heat, dust and vibration |
| Dimensions | 170x142x50mm | Including Security Cover 170x142x50mm |
